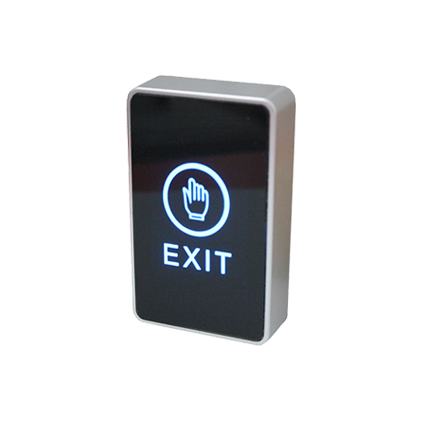

Exit-knapp - Touch - Blå / Grön LED.

Pris: 360,94 kr
Artikelnr: 08569
Köp:

Exit-knapp - Touch - Blå / Grön LED.

Touch Exit Button

> Touch letter button

> Stainless steel

> Installation: Surface mount

> Output contact: NO/NC/COM

> Blue LED indicator: standby

> Green LED indicator: active

> Dimension: 5.0W x 8.6H x 2.0D (cm)

Product Parameter: Parameter Description
Dimensions: 5.0W x 8.6H x 2.0D (cm)
Standard Structure: Stainless steel panel, touch button
Current Rating: 3A@12~24V DC MAX
Output Contact NO/NC/COM
Mechanical Life 500000 tested
Sensitive Distance: 5-15cm adjustable
Operating Temperature: -10 oC ~ 55 oC (14 oF ~ 131 oF)
Panel Material: Stainless steel panel, wire drawing finished
Weight: 0.095kg



Exit-knapp - Touch - Blå / Grön LED.

Touch Exit Button

> Touch letter button

> Stainless steel

> Installation: Surface mount

> Output contact: NO/NC/COM

> Blue LED indicator: standby

> Green LED indicator: active

> Dimension: 5.0W x 8.6H x 2.0D (cm)

Product Parameter: Parameter Description
Dimensions: 5.0W x 8.6H x 2.0D (cm)
Standard Structure: Stainless steel panel, touch button
Current Rating: 3A@12~24V DC MAX
Output Contact NO/NC/COM
Mechanical Life 500000 tested
Sensitive Distance: 5-15cm adjustable
Operating Temperature: -10 oC ~ 55 oC (14 oF ~ 131 oF)
Panel Material: Stainless steel panel, wire drawing finished
Weight: 0.095kg
